wholesales sc filed connector used on network fiber optic media converter rj45

Grote Afbeelding : wholesales sc filed connector used on network fiber optic media converter rj45

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	HYG
Modelnummer:	Hyg-feit-FC/APC

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100 Stuk/Stukken
Prijs:	$1.00 - $1.50 / Piece
Verpakking Details:	2000 PCs/ctn, 343334cm
Levering vermogen:	1000000 Stuk/Stukken per Maand

Contact

Gedetailleerde productomschrijving

Metalen kaptype:	APC	schakelaartype:	FC
Gegevenstransmissie:	CATV	optische vezelsensoren:	enige wijze
APC het oppoetsen:	APC het oppoetsen	veiligheid & bescherming:	vezeldelen & Toebehoren
Telecommunicatie:	voeding & distrubution	metalen kap:	ceramische metalen kap
het gebruiken van methodes:	rechtstreeks/ingebed type/het hete smelten	Haven:	Shenzhen

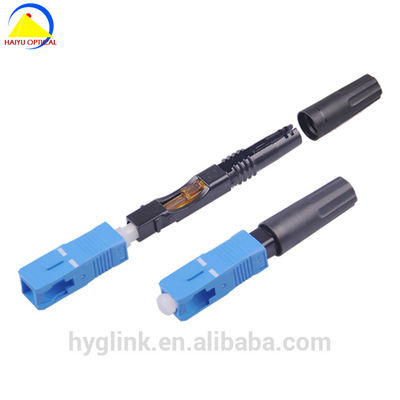

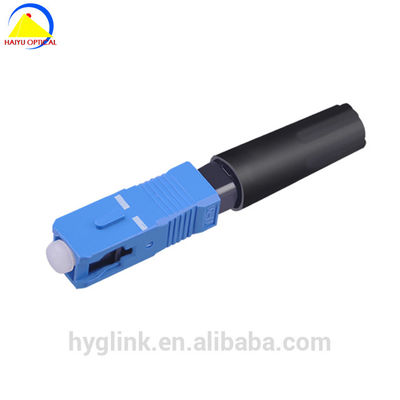

Network fiber optic media converter rj45 sc connector with wholesale

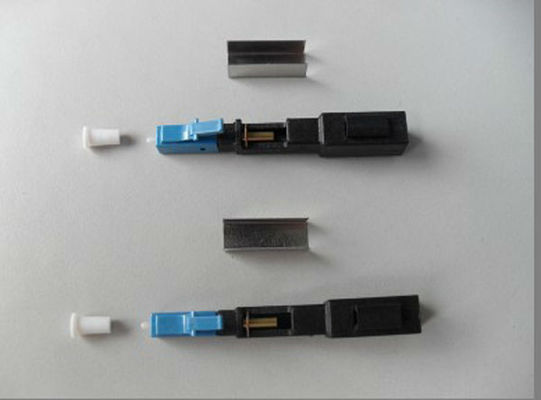

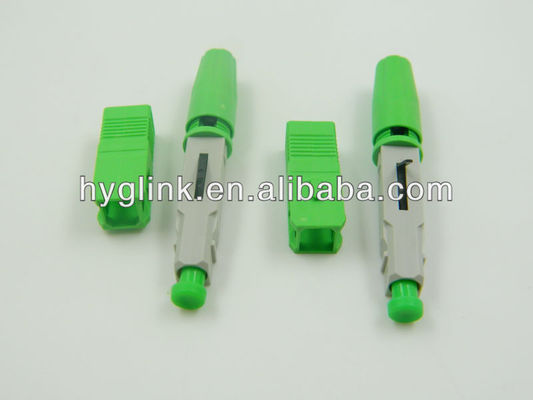

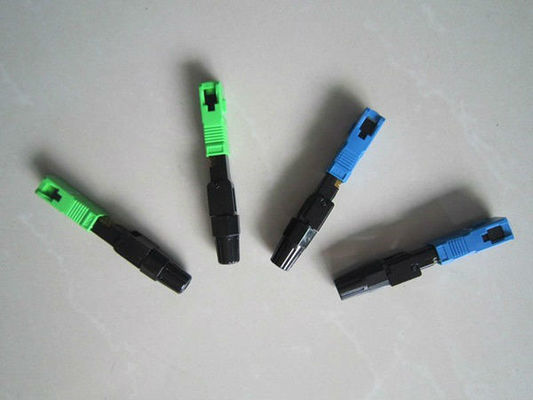

The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.

Characteristics:

Good performance and High success rate.

Easiness in installation with average splicing time of 15 sec

Special tool is simple and convenient to use.

Reusable and repeat orperation times are up to 100.

Integrated protection of the casing to prevent the connector form impact

On line tension is up to 20N to protect the connector from the draging

The maxmum tension is up to 100N. It’s the most safety connector

Application:

FTTX/FTTH fiber to the home

Local area network and smart grid

Mining and Oil

Security equipment

Optical Characteristics:

Items		G.652	G.657A	super soft fiber
Insert loss	@1310 nm	/	≤ 0.3dB	≤ 0.25 dB
	@1550 nm	/	≤ 0.35 dB	≤ 0.3 dB
Return loss	@1310 nm	/	≤ -40 dB	≤ -45 dB
	@1550 nm	/	≤ -40 dB	≤ -45 dB

Environment Parameters

Test Item	Change IL	Change RL	Test condition
Mechanical life	≤ 0.2 dB	≤ 5 dB	500 (times)300/100010D/20D
On line tension	≤ 0.2 dB	≤ 5 dB	20N300/100010D/20D
Impation	≤ 0.2 dB	≤ 5 dB	4m high / 3 axis/ 3times300/100010D/20D
High temperature storage	≤ 0.2 dB	≤ 5 dB	80C / 96(hours)300/100010D/20D
Low temperature storage	≤ 0.2 dB	≤ 5 dB	-40C / 96(hours)
Temperature cycling	≤ 0.2 dB	≤ 5 dB	-40C – 75C / 96(hours)
