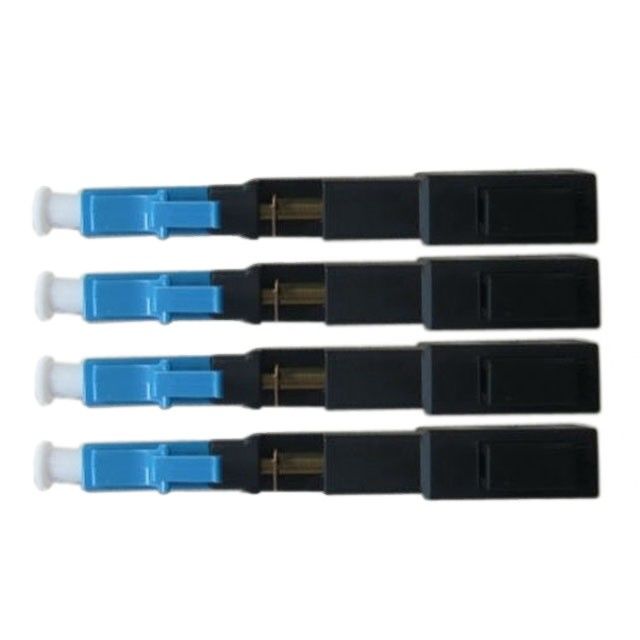

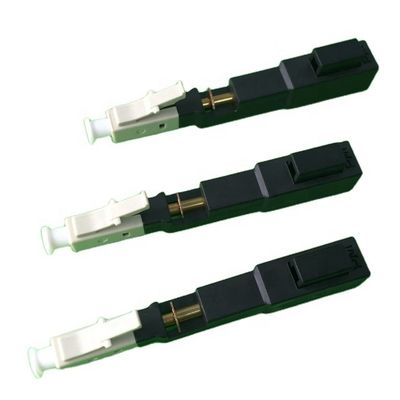

Fiber optic LC/UPC fast connector

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Grote Afbeelding :  Fiber optic LC/UPC fast connector

Productdetails:
Plaats van herkomst: Guangdong, China
Merknaam: HYG
Certificering: RoHS
Modelnummer: Hyg-feit-FC/UPC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 100 Stuk/Stukken
Prijs: $2.00 - $5.00 / Piece
Verpakking Details: 2000 PCs/ctn, 34*33*68cm
Levering vermogen: 1000000 Stuk/Stukken per De optische snelle schakelaar van de maandlc/upc vezel
Gedetailleerde productomschrijving
Type: Vezeladapter & Schakelaars Nr van Vezel: 1.
Gebruik: FTTH Productnaam: vezel optische snelle schakelaar
toepassing: Het Netwerk van FTTH FTTB FTTX Kleur: Blauw
Garantie: 1 jaar Vezeltype: Enige Vezel Enige Wijze
materiaal: Plastiek Gewicht: 5g
Schakelaartype: LC functie: Optische het Netwerkverbinding van FTTH
Haven: Shenzhen

Fiber optic LC/UPC fast connector





  The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.



Characteristics:



Good performance and High success rate.



Easiness in installation with average splicing time of 15 sec



Special tool is simple and convenient to use.



Reusable and repeat orperation times are up to 100.



Integrated protection of the casing to prevent the connector form impact



 On line tension is up to 20N to protect the connector from the draging



The maxmum tension is up to 100N. It’s the most safety connector



Application:





FTTX/FTTH fiber to the home

Local area network and smart grid

Mining and Oil

Security equipment



Optical Characteristics:



Items   G.652 G.657A super soft fiber
Insert loss @1310 nm / ≤ 0.3dB ≤ 0.25 dB
  @1550 nm / ≤ 0.35 dB ≤ 0.3 dB
 Return loss @1310 nm / ≤ -40 dB ≤ -45 dB
  @1550 nm / ≤ -40 dB ≤ -45 dB



Environment Parameters





Test Item Change IL Change RL Test condition
 Mechanical life ≤ 0.2 dB ≤ 5 dB 500 (times)300/100010D/20D
 On line tension ≤ 0.2 dB ≤ 5 dB 20N300/100010D/20D
 Impation ≤ 0.2 dB ≤ 5 dB  4m high / 3 axis/ 3times300/100010D/20D
 High temperature storage ≤ 0.2 dB ≤ 5 dB 80C / 96(hours)300/100010D/20D
Low temperature storage ≤ 0.2 dB ≤ 5 dB -40C / 96(hours)
 Temperature cycling ≤ 0.2 dB ≤ 5 dB -40C – 75C / 96(hours)





Storage/Operating Temperature: -40°C to +70°C





Fiber optic LC/UPC fast connector 0Fiber optic LC/UPC fast connector 1Fiber optic LC/UPC fast connector 2Fiber optic LC/UPC fast connector 3Fiber optic LC/UPC fast connector 4





Company Information

Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television

Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China

Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.



Fiber optic LC/UPC fast connector 5Fiber optic LC/UPC fast connector 6Fiber optic LC/UPC fast connector 7

Certifications

Fiber optic LC/UPC fast connector 8

After-Sales Service

Fiber optic LC/UPC fast connector 9



OEM & ODM is accepted, any questions welcome to contact us.
